Mahindra Compact Round Baler

Mahindra AB1050 is a tractor operated compact round baler which picks up cut straw and compresses it into compact round bales weighing between 20-30 kg.


                                        High productivity (t/h)

                                        High bale density

                                        High number of bales per hour

FEATURES

Self-lubrication & Cleaning System

Adjustable Bale Density

Spring Loaded Bale Ramp

Manual or Electronic Bale Counter

Shear Bolt as Safety Feature

FEATURES

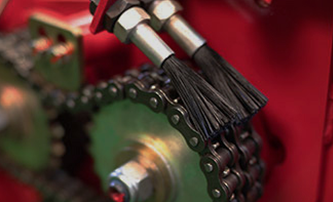

Self-lubrication & Cleaning System

No need to stop round baler for lubrication leading to longer productive working hours.

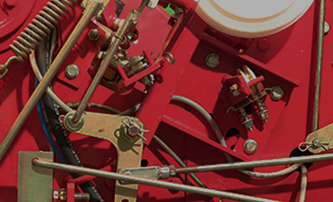

Adjustable Bale Density

Saves on time and effort and time required to measure and keep bale density same ensuring faster speed of operations.

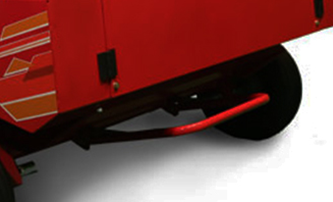

Spring Loaded Bale Ramp

Easily rolls the finished bale from round baler eliminating manual effort and increasing operational efficiency.

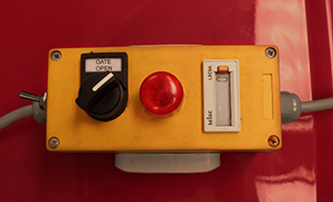

Manual or Electronic Bale Counter

Easily keeps track of bales produced eliminating possible counting errors.

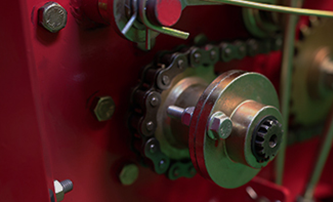

Shear Bolt as Safety Feature

Shear bolt breaks and halts round baler when overloaded protecting the baler machine from major breakdowns.

SPECIFICATIONS

Specification	Mahindra AB 1050 Round Baler	Mahindra AB 1000 Round Baler
Bale Length (mm)	1050	930
Bale Diameter (mm)	610	610
Bale Weight (kg)	18-25	25-30
Binding Twine	Jute Twine	Jute Twine
Pickup Width (mm)	1175	1060
Bale Chamber Width (mm)	1050	930
Efficiency	60-80 bales/h	40-50 bales/h
Tractor Power Range	26 – 33 kW (35-45 HP)	26 – 33 kW (35-45 HP)
PTO speed (r/min)	540	540
Dimension – L x W x H (mm)	1740 X 1450 X 1250	1550 X 1450 X 1250
Weight (kg)	610	625
Hitching	Cat-II 3 Point Linkage	Cat-II 3 Point Linkage

Brochure

Round Baler Download
