Mahindra Mahavator : Heavy Duty Rotavator

Mahindra Mahavator is a heavy series rotary tiller/rotavator designed for excellent performance and durability in a range of tough conditions. The Mahavator delivers superior performance in medium to heavy soils, in both wet and dry conditions. It deals well with tough crop residue, doing an excellent job of cutting and mixing of crop residue in crops such as sugarcane and cotton in a range of hard soils. This rotavator is compatible with a wide range of tractors.

FEATURES

Robust and Sturdy Multispeed Gearbox

Strong Mast

Right Geometry of Rotor Shaft and Mast

Mahindra BoroBlades ^™

Double Cone Mechanical Seal

Superior Aesthetics

FEATURES

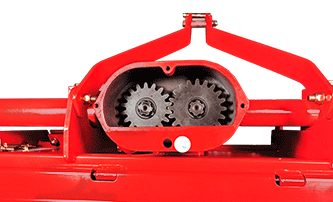

Robust and Sturdy Multispeed Gearbox

Ensures its longer life even when the rotavator works in hard soils

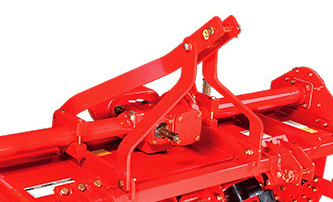

Strong Mast

Ensures its longer life even when the rotavator works in hard soils.

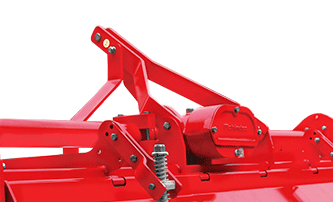

Right Geometry of Rotor Shaft and Mast

Absorbs vibrations and helps decrease the load on tractor, ensuring less revolutions per minute drop.

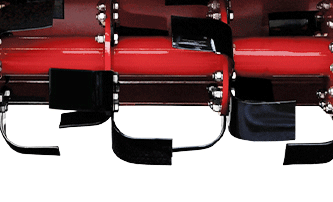

Mahindra BoroBlades ^™

Made from specially sourced Boron steel, these high durability blades ensure low maintenance costs.

Double Cone Mechanical Seal

Prevents dust or dirt from entering, ensuring longer life of seals and bearings.

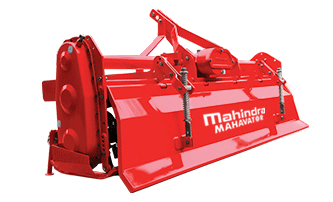

Superior Aesthetics

Excellent paint gloss retention and welding finish of rotavator.

SPECIFICATIONS

Parameter	1.6 m	1.8 m	2.1 m	2.3 m	2.5 m
Suitable Tractor (kW)	33 - 37	37 - 41	41-45	45-48	48-52
(HP)	(45-50)	(50-55)	(55-60)	(60-65)	(65-70)
Working width, plate in to in (mm)	1636	1889	2142	2340	2647
Total width (mm)	1801	2054	2307	2505	2812
Tilling width, blade out to out (mm)	1544	1797	2050	2249	2556
Total length (mm)	951	951	951	1069	1020
Total height (mm)	1149	1149	1149	1155	1149
Working depth (mm)*	100-140	100-140	100-140	100-140	100-140
Number of blades	36	42	48	54	60
Blade compatibility	L/C	L/C	L/C	L/C	L/C
Primary gear box	Multi speed	Multi speed	Multi speed	Multi speed	Multi speed
Side transmission	Gear drive	Gear drive	Gear drive	Gear drive	Gear drive
Weight, without propeller shaft (kg)	438	480	506	570	610
Standard speed gears	17/21	17/21	17/21	17/21	17/21
*Depth will differ, depending on soil conditions Technical specifications are subject to change due to continuous improvements on products.

Brochure

Mahindra Mahavator Download
