Mahindra Front End Loader 13 FX

Mahindra Front End Loader is designed for heavy duty applications in the field. The Mahindra Front End Loader can be used with a variety of bucket options which makes it useful in a wide range of applications. This agricultural implement is a tractor attachment.


                                        Front End Loader attachable and detachable in 2 min

                                        Zero modifications on tractor for installation of front end loader

                                        Longest warranty in industry (1year or 1000 h whichever is earlier)

                                        Well-engineered product with easy & comfortable operation

FEATURES

Self-leveling System

Parking Stands

Friendly Use

Gas and Oil Filled Shock Eliminator

Pin Type Attachment

Hardened Pins and Bushes

Well-Engineered Product, Zero Tractor Modification

Bucket Types

FEATURES

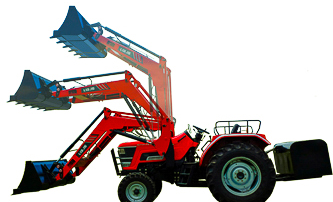

Self-leveling System

Maintains the bucket angle from bottom to top during operations, so content doesn’t shift out of bucket.

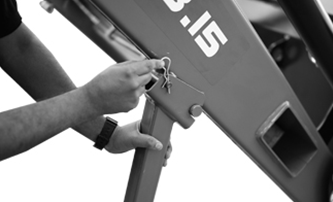

Parking Stands

The loader boom can be parked without any damage to the bucket or the boom.

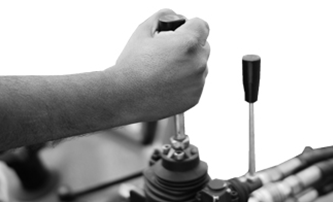

Friendly Use

Single lever operated control valve for high accuracy and comfort.

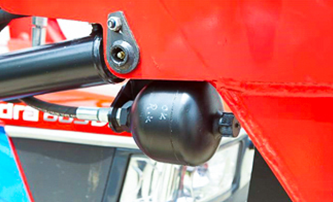

Gas and Oil Filled Shock Eliminator

Ensures smoother ride and less jerks.

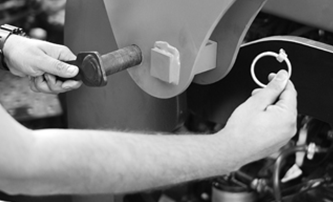

Pin Type Attachment

5. Allows single person to hitch or unhitch the loader without using any tool.

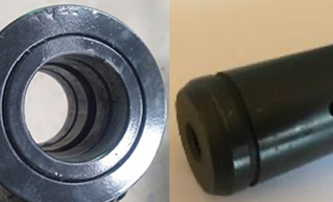

Hardened Pins and Bushes

Comes with grease channels and storage, ensures high durability of loader.

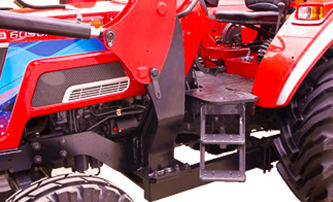

Well-Engineered Product, Zero Tractor Modification

Ease of access to driver and daily maintenance. When loader is uninstalled, tractor can be used for any other purpose or sold with a higher resale value.

Bucket Types

Full range of buckets available which include, grabber bucket, booster bucket, bale grabber, general purpose bucket, booster with grabber, pallet fork, and a 6-in-1 bucket.

SPECIFICATIONS

Loader Type	Units
Max Height at Bucket Pivot	3960 mm
Max Height Under Horizontal Standard Bucket	3700 mm
Max Height Under Dumped Standard Bucket	3230 mm
Max Height Under Dumped Construction Booster	4450 mm
Max Height Under Dumped Light Material Booster	4450 mm
Digging Depth	150 mm
Dumping Angle at Max Height (Standard bucket)	52 degree
Loading Angle at Ground Level (Standard bucket)	48 degree

Brochure

13 FX Loader Download
