Mahindra Planting Master Paddy 4RO : Rice Transplanter

Mahindra PlantingMaster Paddy 4RO is the first 4 row ride on rice transplanter in India. This rice transplanter is a unique combination of comfort and economy. It makes rice transplanting a drudgery free experience!

Uniform transplanting
Quicker transplanting
Comfortable & easy to operate
Lower costs of transplanting

FEATURES

H-Fork & Push Rod Double Action Planting Arrangement

Adjustable Hill Spacing

5-Step Planting Depth Adjustment

10 Division Seedling Feed Adjustment

4WD & Power Steering

Smile U Turn

FEATURES

Powerful Petrol Engine

  • The higher torque enables the rice transplanter to function smoothly in shallow puddled fields in all type of soil conditions.

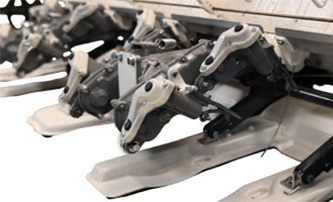

H-Fork & Push Rod Double Action Planting Arrangement

  • This gives precise planting which is as gentle as manual plantation and avoids damage to the young rice seedlings and major roots.

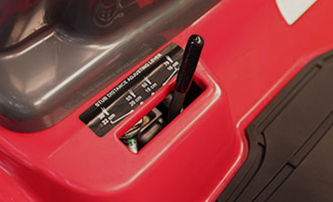

Adjustable Hill Spacing

  • Farmer can adjust plant to plant distance to suit a particular rice variety’s agronomy for healthier tilling and root development.

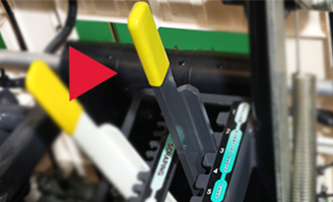

5-Step Planting Depth Adjustment

  • Helps farmer adjust the planting depth as per variety and age of the rice seedling – young to mature seedlings. This results in healthier root development.

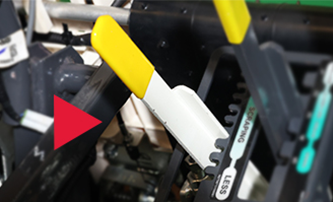

10 Division Seedling Feed Adjustment

  • Farmer can adjust density of rice seedlings per hill depending on rice crop variety and seedling age.

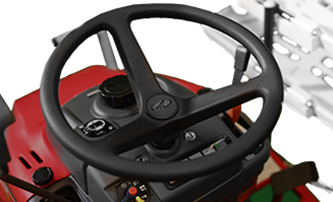

4WD & Power Steering

  • Operator can easily maneuver the machine in paddy field and specially at headland.

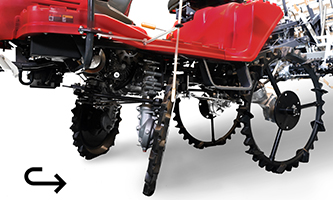

Smile U Turn

  • This feature assists the operator while turning in difficult situations in the paddy field by equally distributing power to both rear wheels preventing the outer rear wheel from slipping.

SPECIFICATIONS


Model
Planting Master Paddy 4RO

Driving Type
4WD

Dimensions

Overall Dimensions (mm) L x W X H
2715 x 1560 x 1375

Weight (kg)
375

Minimum Ground Clearance (mm)
355

Engine

Type
Air cooled, 4 cycle OHV Gasoline engine

Total Displacement (L)
0.269

Output/No. of Revolution (kW/r/min)
5.1/3600 (Max. 5.8/3600)

Fuel Tank Capacity (L)
6

Starting Method
Starter Motor

Drive system

Wheel Type - Front
Rubber lug (Non-Puncture type)

Wheel Type - Rear
Rubber lug (Non-Puncture type)

Wheel OD x Width – Front (mm)
550 x 46

Wheel OD x Width – Rear (mm)
750 x 90

Transmission Type
Hydrostatic Transmission (HST)

Number of Steps
Forward・Reverse step less speed change (Sub shift 2 steps)

Planting System

Planter type
Rotary type

Number of Planting Rows
4

Distance Between Rows (cm)
30

Spacing Between Hills (cm) (Slip ratio 10%)
16, 18, 20, 22

Number of Hills (hill / 3.3m2) (Slip ratio 10%)
70, 60, 55, 50

Planting Depth (cm)
2 -5 (5 steps)

Number of Seedling Per Stub

Lateral Feeding (Times)
20 & 26 (2 Steps)

Longitudinal Taking (mm)
8 -19 (10 steps)

Seedling

Type of Seedling
Mat & Tray Type

Leafage and Seedling Height
2.0 -3.5 leaves, 8 -25 cm

Loadable Number of Seedling (Boxes)
12 (Seedling Tray - 8, spare seedling Tray - 4)

Planting Speed (m/s) (Slip ratio 10%)
0 -1.2 (0 -1.1)

Driving Speed (m/s)
0 -2.6
