Mahindra Gyrovator ZLX+ : Light Duty Rotavator

Mahindra Gyrovator ZLX+ is a light series rotary tiller/rotavator specially designed for high performance in light and medium soils in both dry and wet soil conditions such as puddling. Mahindra Gyrovator ZLX+ 's light weight and robust design make it a complete solution for the progressive farmers tilling needs. This rotary tiller/rotavator is compatible with a wide range of tractors.

High quality pulverization
Low fuel consumption
Enhanced productivity
Low cost of spares and maintenance

FEATURES

Sturdier Gearbox

Mechanical Oil Seal

High Load Bearing Capacity Bearings

High Durability Mahindra BoroBladesTM

Larger Working Width

FEATURES

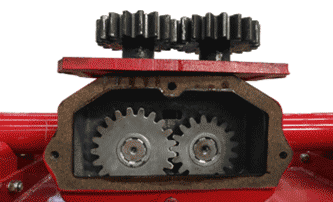

Multi-speed Gearbox

  • Enables high quality of pulverization in both, dry and wet soil conditions.

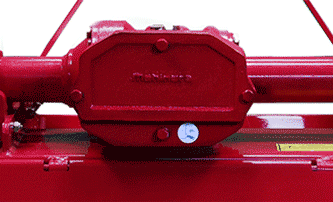

Sturdier Gearbox

  • The larger size of the Gyrovator gearbox makes it sturdier and ensures a breakdown free operation.

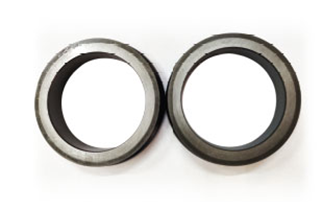

Mechanical Oil Seal

  • Prevents dust from entering the bearings.

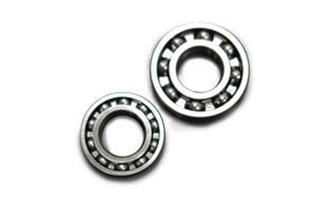

High Load Bearing Capacity Bearings

  • Ensures longer life of bearings.

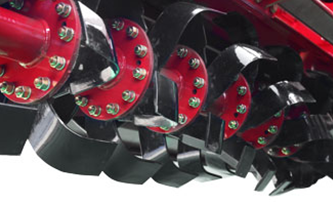

High Durability Mahindra BoroBladesTM

  • High durability blades reduce cost of maintenance.

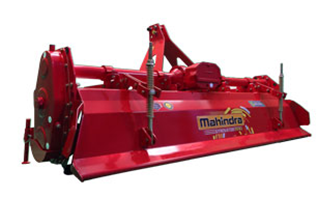

Larger Working Width

  • Enables faster coverage of land during tillage operations; this saves on time and allows farmers to earn more during the season.

SPECIFICATIONS


ZLX+ 125
ZLX+ 145 O/S
ZLX+ 145 C/M
ZLX+ 165
ZLX+ 185
ZLX+ 205

Type
1.25 m
1.45 m O/S
1.45 m C/M
1.65 m
1.85 m
2.05 m

Tractor Power Range Required
22-26 kW

(30-35 HP)
26-30 kW

(35-40 HP)
26-30 kW

(35-40 HP)
30-33 kW

(40-45 HP)
33-37 kW

(45-50 HP)
37-44 kW

(50-60 HP)

Overall Width (mm)
1530
1730
1730
1930
2130
2330

Working Width (mm)
1270
1470
1470
1670
1870
2070

Weight (kg)
327
357
358
383
402
423

Gear Box
Multi Speed
Multi Speed
Multi Speed
Multi Speed
Multi Speed
Multi Speed

Side Transmission
Gear Drive
Gear Drive
Gear Drive
Gear Drive
Gear Drive
Gear Drive

Type of Blades
L/C Type
L/C Type
L/C Type
L/C Type
L/C Type
L/C Type

Number of Blades
36
42
42
48
54
60

Rotor r/min @ 540 PTO r/min SPEED
174 r/min
174 r/min
174 r/min
174 r/min
174 r/min
174 r/min

194 r/min
194 r/min
194 r/min
194 r/min
194 r/min
194 r/min

239 r/min
239 r/min
239 r/min
239 r/min
239 r/min
239 r/min

266 r/min
266 r/min
266 r/min
266 r/min
266 r/min
266 r/min
Note: Depending on tractor power and type of soil, the size can be changed *O/S - offset mounted gearbox  *C/M - centre mounted gearbox
